DC/DC CONVERTERS

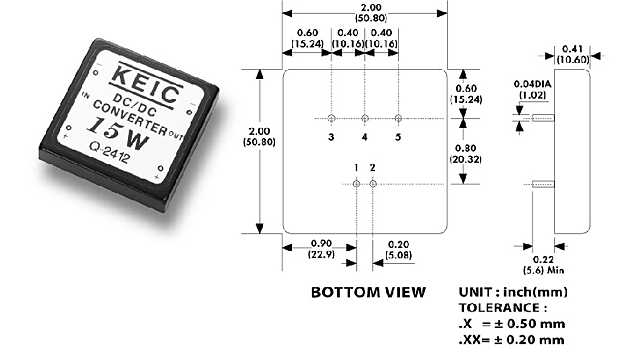

Case No. : C
Pinout : A
15W DC/DC CONVERTERS
  Model No. Input Voltage Output Voltage Output Current CASE
Q-1205 12 VCD
( 9-18 )		 +5 VCD +3000mA CA
Q-1212 +12 VCD +1250mA CA
Q-1215 +15 VCD +1000mA CA
Q-1224 +24 VCD +625mA CA
Q-2405 24 VCD
( 18-36 )		 +5 VCD +3000mA CA
Q-2412 +12 VCD +1250mA CA
Q-2415 +15 VCD +1000mA CA
Q-2424 +24 VCD +625mA CA
Q-1205-5 12 VCD
( 9-18 )		 +/-5 VCD +/-1500mA CA
Q-1212-12 +/-12 VCD +/-625mA CA
Q-1215-15 +/-15 VCD +/-500mA CA
Q-1224-24 +/-24 VCD +/-313mA CA
Q-2405-5 24 VCD
( 18-36 )		 +/-5 VCD +/-1500mA CA
Q-2412-12 +/-12 VCD +/-625mA CA
Q-2415-15 +/-15 VCD +/-500mA CA
Q-2424-24 +/-24 VCD +/-313mA CA
