OPEN FRAME POWER SUPPLIES
KEIC provides custom open frame power supplies as part of our solutions for your products. We have an extensive background in low and medium power AC/DC and DC/DC reference designs to fill your specific product needs. Typical topologies include:
  • Fly-back variations
  • Forward converter
  • Push Pull
  • Half bridge LLC resonant
  • RCC
Our R&D team has the design expertise and experience to provide full featured, minimal form-factor, cost-effective solutions. We are also familiar with injection molded plastic parts as well as laser cut, bent, stamped and cast metal parts. KEIC¡¦s engineering team is experienced in working with our OEM customers and ready to help specify:
  • Input requirements
    ·   Universal AC input voltage/wide DC voltage range
    ·   Frequency 47-63 Hz
    ·   Low inrush current
    ·   Active PFC function
    ·   High Efficiency
    ·   Low LEAKAGE current
    ·   No load power consumption < 0.5W
  • Output requirement
    ·   Single, dual, triple or multiple output voltage
    ·   Low ripple + noise
    ·   Line Regulation
    ·   Hold-up time
    ·   Over-voltage protections (OVP), Over-current Protection (OCP)
    ·   Short circuit protection
    ·   100% full load burn-in test
    ·   Withstand voltage test
  • Environmental
    ·   High operating temperature range.
    ·   Wide storage temperature range
    ·   Relative humidity
  • ¡P Compliance
    ·   Safety ¡X UL 60950, EN60950, medical standard UL-60601-1
    ·   EMI meet EN55022, class B and meet EN61000
    ·   Green initiatives (RoHS, WEE, CEC)
KEIC's power supply offering includes:
  • Low and medium power solutions from 5 to 300 watts
  • Single and multiple constant voltage and constant power outputs
  • Harmonic current (power factor) correction above 60 watts (AC powered devices)
  • High efficiency switching topologies (AC/DC up to 90% and DC/DC over 90%)
  • International safety, EMC and green initiative compliance




OPEN FRAME SWITCHING POWER SUPPLYS

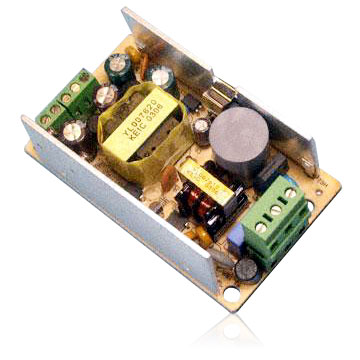

5 to 100W Open Frame Switching Power Supply, Customized Designs are Welcome
Model Number:KOF Series
OEM contract manufacturing

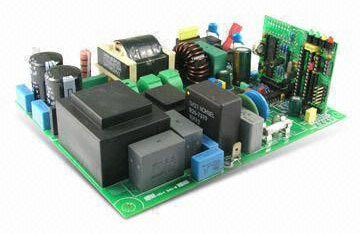

5 to 100W Open Frame Switching Power Supply, OEM/ODM Orders are Welcome
