DC/DC CONVERTERS

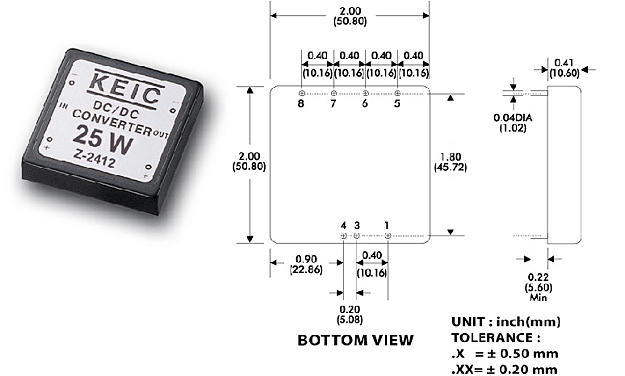

CCse No. : C
Pinout : C
20~30W DC/DC CONVERTERS
  Model No. Input Voltage Output Voltage Output Current CCSE
Z-2405 12 VCD
( 9-18 )
+5 VCD +3000mA CC
Z-2412 +12 VCD +1250mA CC
Z-2415 +15 VCD +1000mA CC
Z-4805 24 VCD
( 18-36 )
+5 VCD +3000mA CC
Z-4812 +12 VCD +1250mA CC
Z-4815 +15 VCD +1000mA CC
Z-2405-5 12 VCD
( 9-18 )
+/-5 VCD +/-1500mA CC
Z-2412-12 +/-12 VCD +/-625mA CC
Z-2415-15 +/-15 VCD +/-500mA CC
Z-4805-5 24 VCD
( 18-36 )
+/-5 VCD +/-1500mA CC
Z-4812-12 +/-12 VCD +/-625mA CC
Z-4815-15 +/-15 VCD +/-500mA CC
Z-2405-12   +5/+12/-12 VCD 3000/250/250mA CC
Z-2405-15 +5/+15/-15 VCD 3000/300/300mA CC
Z-4805-12 +5/+12/-12 VCD 3000/250/250mA CC
Z-4805-15 +5/+15/-15 VCD 3000/300/300mA CC
