DC/DC CONVERTERS

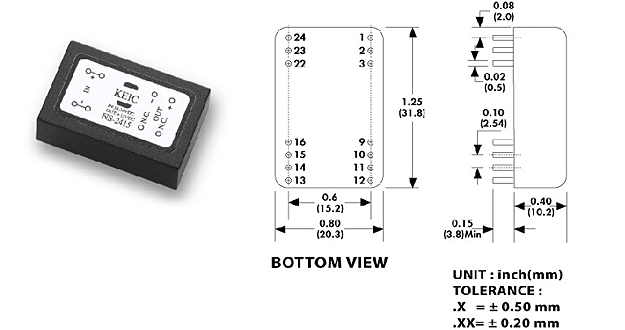

Case No. : A1
Pinout : A
3W DC/DC CONVERTERS
Model No. Input Voltage Output Voltage Output Current CASE
NS-1203 12 VCD
( 9-18 )
+3.3 VCD +900mA A1A
NS-1205 +5 VCD +600mA A1A
NS-1212 +12 VCD +250mA A1A
NS-1215 +15 VCD +200mA A1A
NS-1224 +24 VCD +125mA A1A
ND-1205D +/- 5 VCD +/- 300mA A1A
ND-1212D +/- 12 VCD +/- 120mA A1A
ND-1215D +/- 15 VCD +/- 100mA A1A
NS-2403 24 VCD
( 18-36 )
+3.3 VCD +900mA A1A
NS-2405 +5 VCD +600mA A1A
NS-2412 +12 VCD +250mA A1A
NS-2415 +15 VCD +200mA A1A
NS-2424 +24 VCD +125mA A1A
ND-2405D +/- 5 VCD +/- 300mA A1A
ND-2412D +/- 12 VCD +/- 120mA A1A
ND-2415D +/- 15 VCD +/- 100mA A1A
NS-4803 48 VCD
( 36-72 )
+3.3 VCD +900mA A1A
NS-4805 +5 VCD +600mA A1A
NS-4812 +12 VCD +250mA A1A
NS-4815 +15 VCD +200mA A1A
NS-4824 +24 VCD +125mA A1A
ND-4805D +/- 5 VCD +/- 300mA A1A
ND-4812D +/- 12 VCD +/- 120mA A1A
ND-4815D +/- 15 VCD +/- 100mA A1A
