DC/DC CONVERTERS

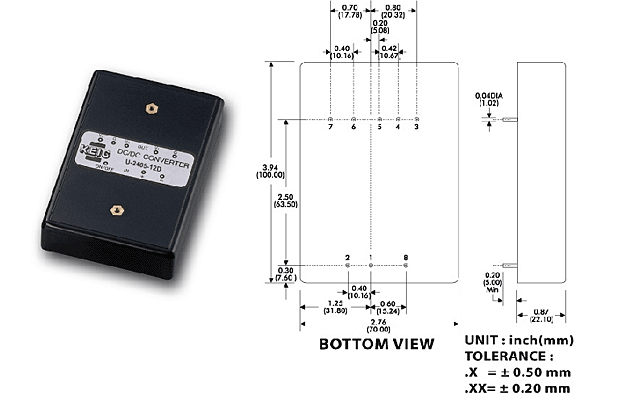

CAse No. : F1
Pinout : A
40W DC/DC CONVERTERS
  Model No. Input Voltage Output Voltage Output Current CASE
U-1205 12 VCD
( 9-18 )
+5 VCD +8000mA F1A
U-1212 +12 VCD +3400mA F1A
U-1215 +15 VCD +2700mA F1A
U-2405 24 VCD
( 18-36 )
+5 VCD +8000mA F1A
U-2412 +12 VCD +3400mA F1A
U-2415 +15 VCD +2700mA F1A
U-1205-5 12 VCD
( 9-18 )
+/-5 VCD +/-4000mA F1A
U-1212-12 +/-12 VCD +/-1670mA F1A
U-1215-15 +/-15 VCD +/-1340mA F1A
U-2405-5 24 VCD
( 18-36 )
+/-5 VCD +/-4000mA F1A
U-2412-12 +/-12 VCD +/-1670mA F1A
U-2415-15 +/-15 VCD +/-1340mA F1A
U-1205-12D 12 VCD
( 9-18 )
+5V/+12V/-12V 7000/300/300mA F1A
U-1205-15D +5V/+15V/-15V 6200/300/300mA F1A
U-1205D-12 +5V/-5V/-12V 7000/300/300mA F1A
U-2405-12D 24 VCD
( 18-36 )
+5V/+12V/-12V 7000/300/300mA F1A
U-2405-15D +5V/+15V/-15V 6200/300/300mA F1A
U-2405D-12 +5V/-5V/-12V 7000/300/300mA F1A
