DC/DC CONVERTERS

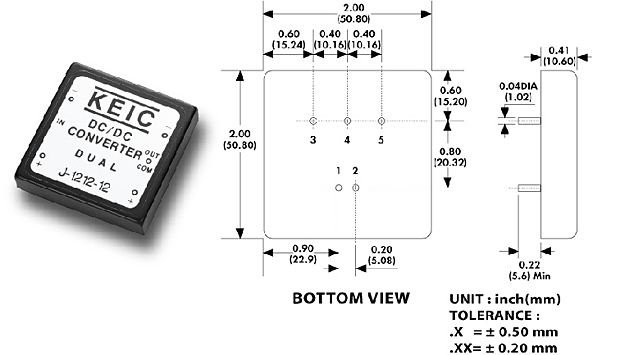

Case No. : C
Pinout : A
5W DC/DC CONVERTERS
| Model No. | Input Voltage | Output Voltage | Output Current | CASE | |
 |
J-1205 | 12 VCD ( 9-18 ) |
+5 VCD | +1000mA | CA |
| J-1212 | +12 VCD | +417mA | CA | ||
| J-1215 | +15 VCD | +334mA | CA | ||
| J-2405 | 24 VCD ( 18-36 ) |
+5 VCD | +1000mA | CA | |
| J-2412 | +12 VCD | +417mA | CA | ||
| J-2415 | +15 VCD | +334mA | CA | ||
 |
J-1205-5 | 12 VCD ( 9-18 ) |
+/-5 VCD | +/-500mA | CA |
| J-1212-12 | +/-12 VCD | +/-210mA | CA | ||
| J-1215-15 | +/-15 VCD | +/-170mA | CA | ||
| J-2405-5 | 24 VCD ( 18-36 ) |
+/-5 VCD | +/-500mA | CA | |
| J-2412-12 | +/-12 VCD | +/-210mA | CA | ||
| J-2415-15 | +/-15 VCD | +/-170mA | CA |
