DC/DC CONVERTERS

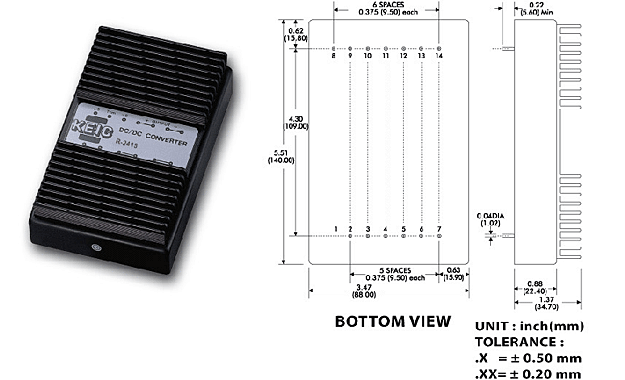

CAse No. : G
Pinout : A
60~100W DC/DC CONVERTERS
| Model No. | Input Voltage | Output Voltage | Output Current | CASE | |
 |
R-1205 | 12 VCD ( 9-18 ) |
+5 VCD | +16000mA | GA |
| R-1212 | +12 VCD | +8000mA | GA | ||
| R-1215 | +15 VCD | +6000mA | GA | ||
| R-2405 | 24 VCD ( 18-36 ) |
+5 VCD | +16000mA | GA | |
| R-2412 | +12 VCD | +8000mA | GA | ||
| R-2415 | 15 VCD | +6000mA | GA | ||
 |
R-1205-5 | 12 VCD ( 9-18 ) |
+/-5 VCD | +/-8000mA | GA |
| R-1212-12 | +/-12 VCD | +/-4000mA | GA | ||
| R-1215-15 | +/-15 VCD | +/-3000mA | GA | ||
| R-2405-5 | 24 VCD ( 18-36 ) |
+/-5 VCD | +/-8000mA | GA | |
| R-2412-12 | +/-12 VCD | +/-4000mA | GA | ||
| R-2415-15 | +/-15 VCD | +/-3000mA | GA | ||
 |
R-1205-12D | 12 VCD ( 9-18 ) |
+5V/+12V/-12V | 6000/2000/500mA | GA |
| R-1205-15D | +5V/+15V/-15V | 6000/1500/500mA | GA | ||
| R-1205D-12 | +5V/-5V/+12V | 5500/5500/500mA | GA | ||
| R-2405-12D | 24 VCD ( 18-36 ) |
+5V/+12V/-12V | 6000/2000/500mA | GA | |
| R-2405-15D | +5V/+15V/-15V | 6000/1500/500mA | GA | ||
| R-2405D-12 | +5V/-5V/+12V | 5500/5500/500mA | GA |
