DC/DC CONVERTERS

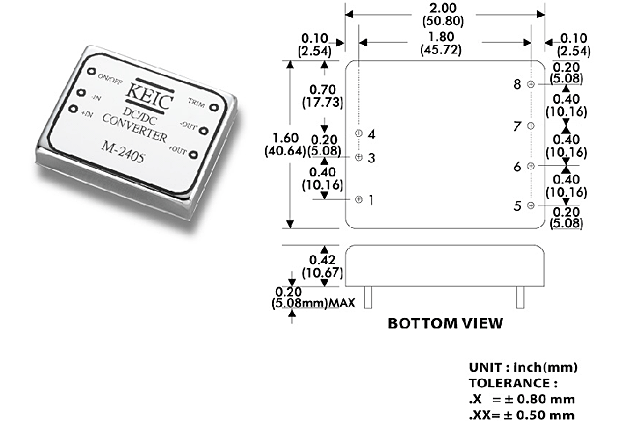

Case No. : H
Pinout : A
M Series 20W DC/DC CONVERTERS
  Model No. Input Voltage Output Voltage Output Current CASE
M-2405 24 VCD
( 18-36 )
+5 VCD +4000mA HA
M-2412 +12 VCD +1666mA HA
M-2415 +15 VCD +1333mA HA
M-2424 +24 VCD +833mA HA
M-4805 48 VCD
( 36-72 )
+5 VCD +4000mA HA
M-4812 +12 VCD +1666mA HA
M-4815 +15 VCD +1333mA HA
M-4824 +24 VCD +833mA HA
M-2405-05 24 VCD
( 18-36 )
+5 VCD +/-2000mA HA
M-2412-12 +12 VCD +/-833mA HA
M-2415-15 +15 VCD +/-666mA HA
M-2424-24 +24 VCD +/-416mA HA
M-4805-05 48 VCD
( 36-72 )
+5 VCD +/-2000mA HA
M-4812-12 +12 VCD +/-833mA HA
M-4815-15 +15 VCD +/-666mA HA
M-4824-24 +24 VCD +/-416mA HA
